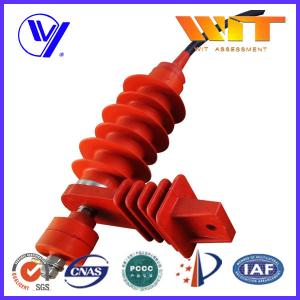

26KV Gapless Transmission Line Surge Arrester with Polymer Housed

Name: 26KV Gapless Transmission Line Surge Arrester with Polymer Housed
Brand: YONGDE
Price: 1 USD

Brand Name : YONGDE

Model Number : YH5CX5-17

Certification : ISO9001

Place of Origin : Zhejiang,China(Mainland)

MOQ : 1pcs

Price : negotiation

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1,500 pcs per month

Delivery Time : 21days per container

Packaging Details : Wooden case

Type : Metal Oxide Surge Arrester

Material : Silicon rubber

Housing : Polymer

Installation : Fixed

Breaking Capacity : High Voltage Circuit Breakers

Arc-extinguishing Medium : Air

Color : Red, Gray

Contact Now

Transmission Line Metal-oxide 26KV Gapless Composite Type Lightning Surge Protector

Description:

With smooth volt-second characteristic curve. Good insulation coordination and protective characteristics.
The electrical frequency withstand voltage is high in discharging gap, high reliability.
Gapless body with winding structure, whole molding with Polymer Housed, Gapless internal, and good sealing performance.

Specifications:

Type	Nominal System Voltage	Rated Voltage	Minmum Reference Voltage under 1 mA DC	MRV under 1/5 μ s Steep Discharge Current	MRV under 8/20 μ s Lightning Discharge Current	MRV under 1.2/50μ S Impulse Discharge Voltage	Power Frequency Withstand Voltage	4/10 μ s High Current Impulse Twice (KA)	2mS SW through-flow capacity A/18
				5kA	5kA
YH5CX-13/40	10	17	20	46	40	100	26	65/80	150/250
YH5CX5-17/50	10	17	25	57.5	50	100	28	85/100	250/400
YH5CX5-26/65	20	26	37	75	65	160	60	85/100	250/400
YH5CX-29/73	20	29	41	75	65	160	65	85/100	250/400

Product Tags:

line surge arrester

transmission line lightning protection

26KV Gapless Transmission Line Surge Arrester with Polymer Housed Images
